SPECIFICATIONS:
IDCOOLING DASHFLOW 360 XT AIO CPU COOLER BLACK 360mm

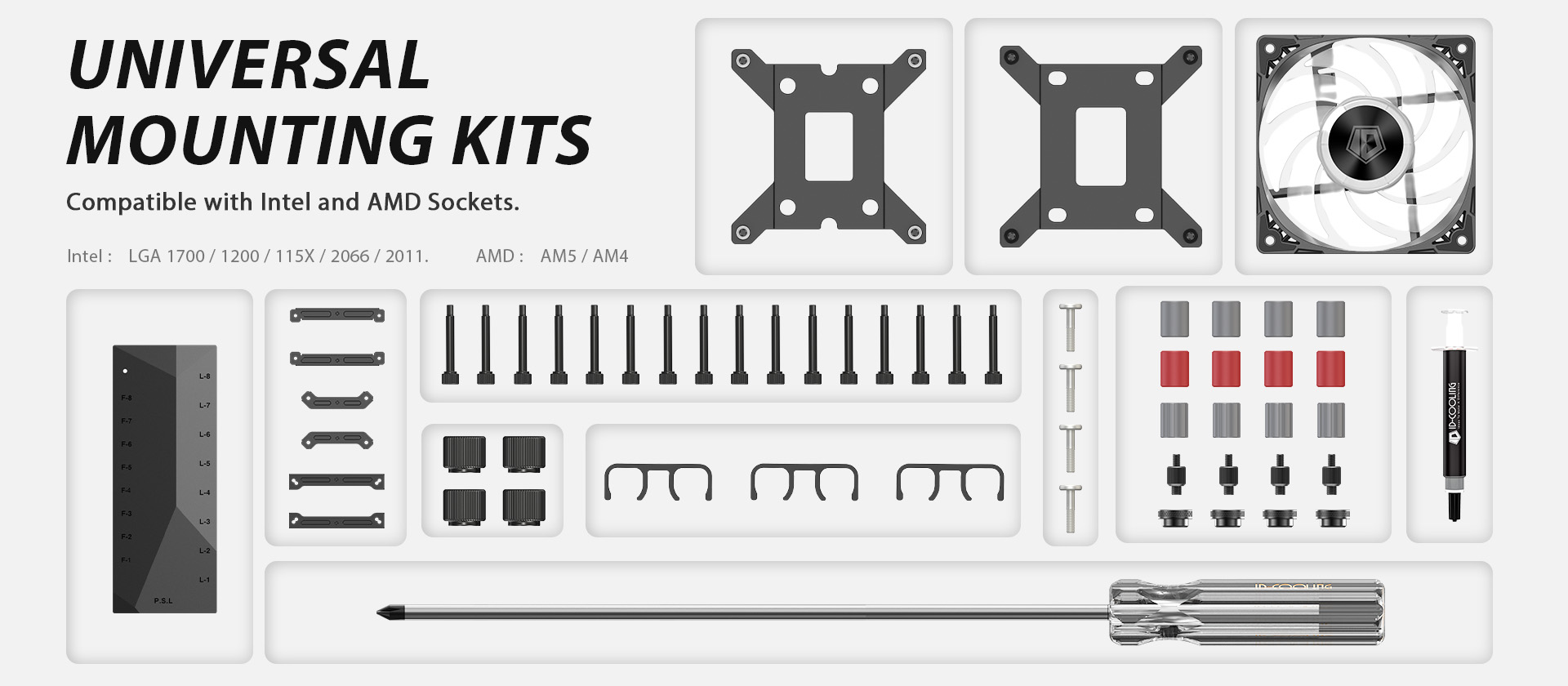

Compatibility | Intel LGA2066/2011/1700/1200/1151/1150/1155/1156 |
AMD AM5/AM4 |
TDP | 350W |
Radiator Dimension | 396×120×27mm |
Radiator Material | Aluminum |
Tube Material | Premium Sleeved Tubing |
Tube Length | 465mm |
Waterblock Dimension | 94x90x62mm |
Cold Plate Material | Copper |
Pump Current | 0.32A MAX. |
Pump Speed | 0~2500RPM |
Pump Bearing | Ceramic Bearing |
Pump Life Expectancy | 50,000 Hrs |
Pump Noise Level | ≤25dB(A) |
Rated Voltage | 12VDC |
Operating Voltage | 10.8～13.2VDC |
Started Voltage | 7VDC |
Power Input | 3W |
Connector | 4Pin PWM |
we have revised the fans in version 2.
| Fan on Radiator (V1) | Fan on Radiator (V2) |
| Fan Dimension | 120×120×25mm
| 120×120×25mm
|
Fan Speed
| 900～2000±10%RPM
| 900～2400±10%RPM
|
Max. Static Pressure
| 2.68mmH2O
| 2.72mmH2O
|
Max. Air Flow
| 85.0CFM
| 85.5CFM
|
Noise Level
| 32.5dB(A) Max.
| 33.5dB(A) Max.
|
| Current Input | 0.25A | 0.18A |
| LED Lighting | 5V ARGB | 5V ARGB |

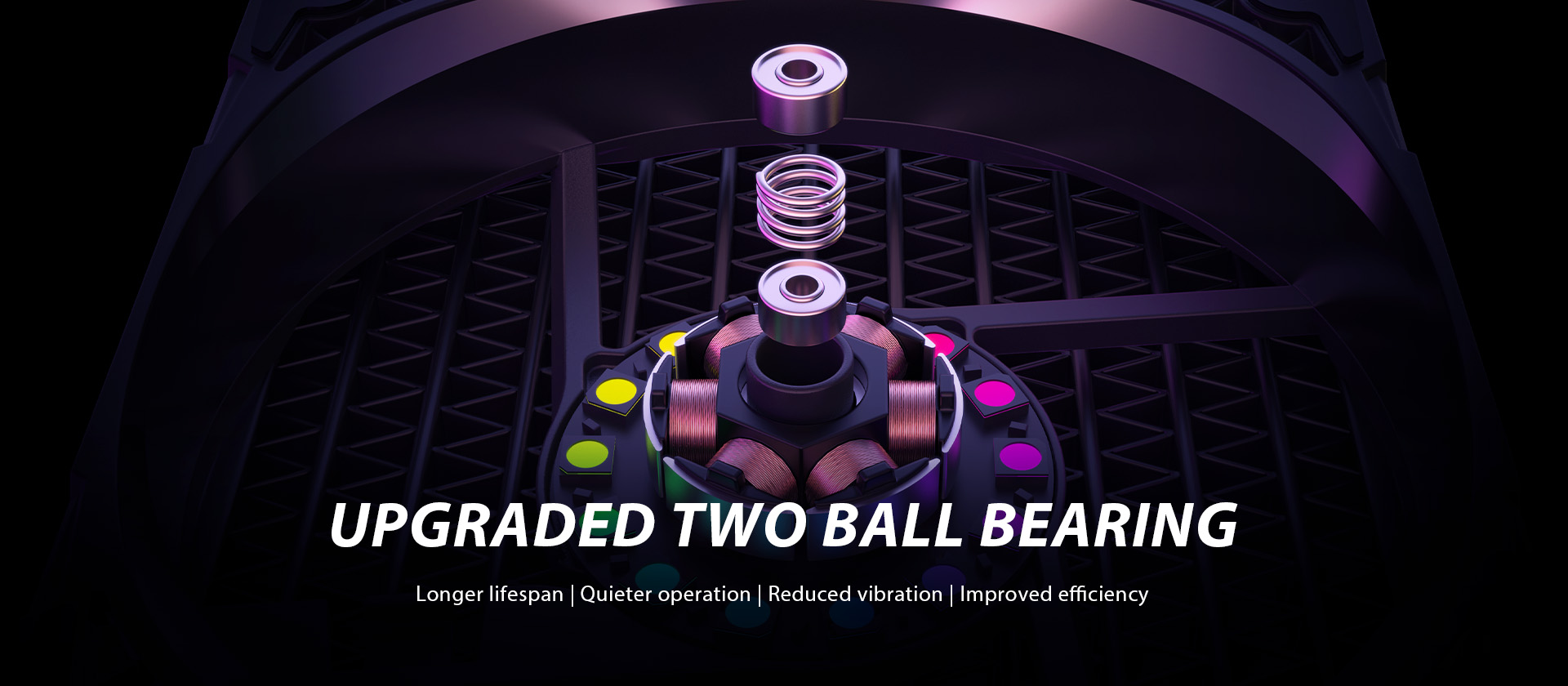

| Bearing | 2 Ball Bearing | 2 Ball Bearing |

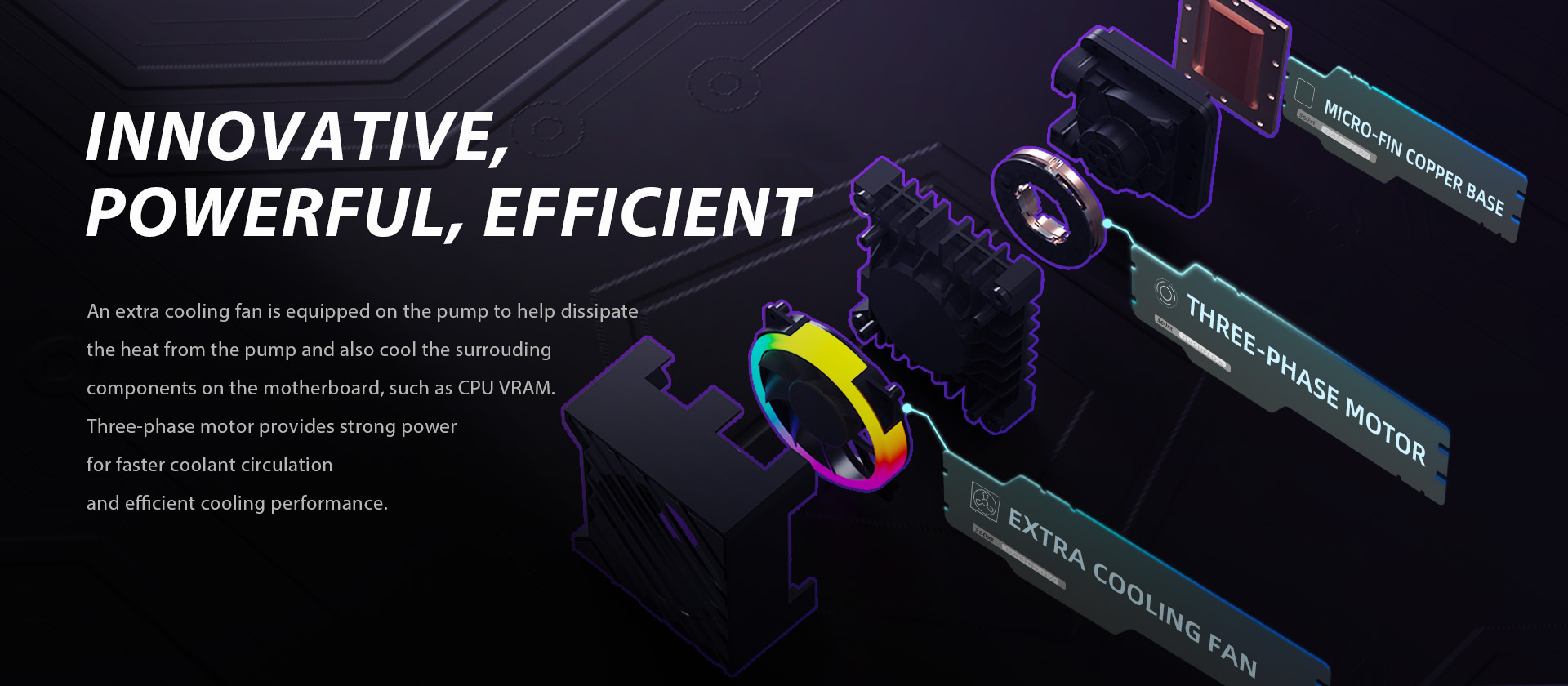

| Fan on Pump |
| Fan Dimension | 120×120×25mm
|
Fan Speed
| 800～2800±10%RPM
|
Max. Static Pressure
| 1.92mmH2O
|
Max. Air Flow
| 23.0CFM
|
Noise Level
| 28.0dB(A) Max.
|
| Current Input | 0.08A |
| LED Lighting | 5V ARGB |
| Bearing | Ball Bearing |
